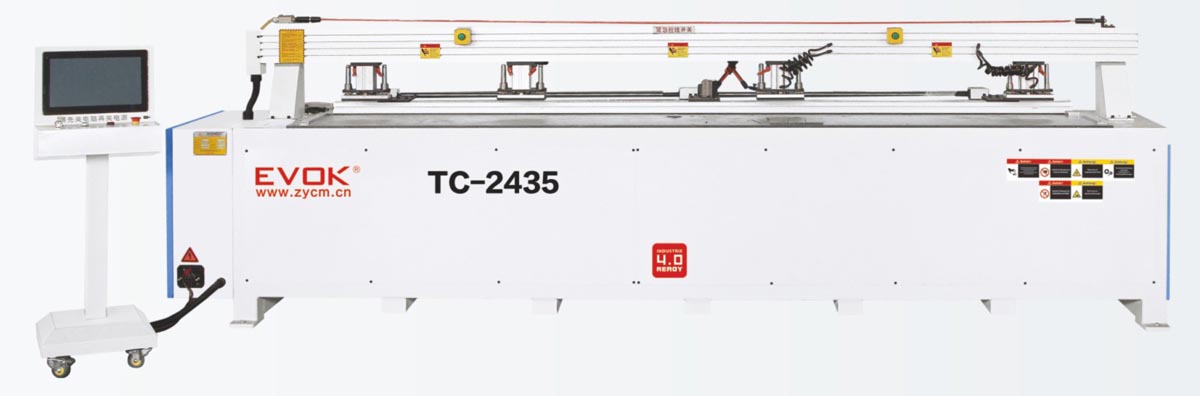

TC-2435 智能化柜门铰链机

Features

1. Intelligent computer control.

2. Obtain drilling parameter by scanning barcode.

3. Efficiency and accuracy.

4. Suitable for cabinet doors.

Technical Specs

◎Power source:380V/50Hz/3HP+N

◎Air pressure:0.6-0.8Mpa

◎Max. drilling diameter:35mm

◎Max. drilling depth:50mm

◎Max. panel length:2400mm

◎Spindle number:3

◎Total power:2.6KW

◎Machine size:3300x710x1300mm

◎Machine weight:1000kg
