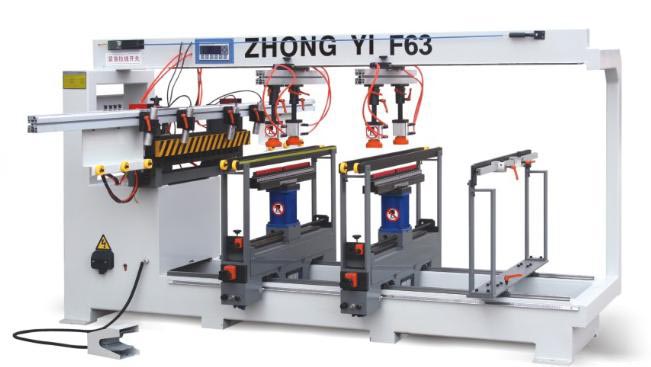

F63 三排钻机

Features

1. Cylinder positioning feed in/out direction.

2. Driller magazine automatically 90︒ turn over.

3. Touch screen control.

4. Efficiency and easily operation.

Technical Specs

◎Power source:380V/50Hz/3HP+N

◎Air pressure:0.6-0.8Mpa

◎Panel length:250-2500mm

◎Panel thickness:10-60mm

◎Panel width:150-1800mm

◎Driller magazine: 2 vertical+1 horizontal

◎Driller bits: 3x21=63 pcs

◎Driller bits distance:32mm

◎Panel positioning feed in/out direction:4 movable cylinders

◎Vertical drilling speed:3000r/min.

◎Drilling depth:60mm

◎Max. drilling diameter:15mm

◎Total power:4.5KW

◎Machine size:2850x1200x1550mm

◎Machine weight:1300kg
