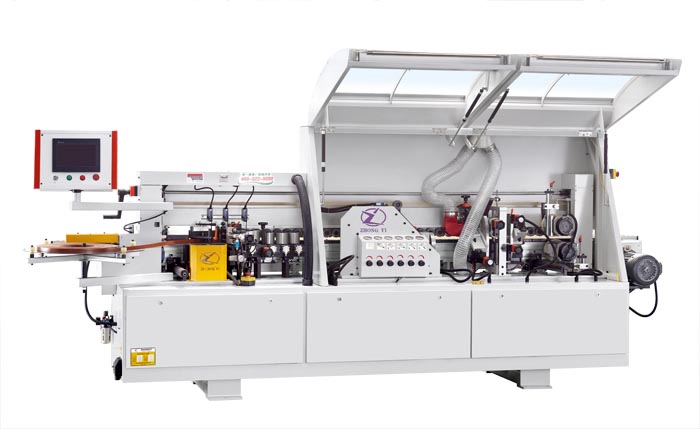

TC-60D 全自动封边机


TC-60D 1.jpg

Features

1. Stable performance.

2. The glue port can be replaced by an optional EVOK made clean-free PUR system.

3. High edge banding speed up to 20m/Min.

4. Wooden banding belt thickness should be less than 15mm.

5. Including functions: Gluing/Edge feeding/Edge cutting/Ends trimming /Fine finishing/ Polishing

Technical Specs

◎Power source: 380V/50Hz/3HP+N

◎Min. panel width: 60mm

◎Min. panel length:100mm

◎Panel thickness: 10-60mm

◎Banding belt thickness: 0.3-12mm

◎Banding belt width: 12-65mm

◎Feeding speed: 10-30m/Min.

◎Air pressure:0.6-0.8Mpa

◎Total power:7KW

◎Machine size:4000x950x1750mm

◎Machine weight:1800kg
