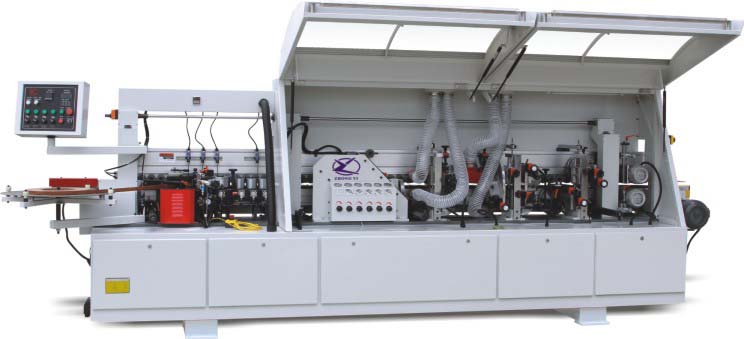

TC-60C 全自动封边机

Features

1. Stable performance, suitable for different bandings.

2. A best solution for effective and qualitative working.

3. The glue port can be replaced by an optional EVOK made clean-free PUR system.

4. High edge banding speed up to 25-30m/Min.

5. Including functions: Gluing/Edge feeding/Edge cutting/Ends trimming/Rough finish/Fine finishing/ Scraping/Polishing

Technical Specs

◎Power source: 380V/50Hz/3HP+N

◎Min. panel width: 60mm

◎Min. panel length:100mm

◎Panel thickness: 10-60mm

◎Banding belt thickness: 0.3-12mm

◎Banding belt width: 12-65mm

◎Feeding speed: 10-30m/Min.

◎Air pressure:0.6-0.8Mpa

◎Total power:9.8KW

◎Machine size:4800x950x1750mm

◎Machine weight:2000kg
